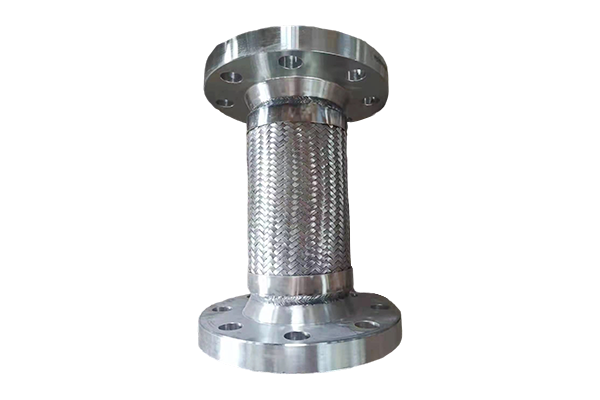

Metal Hose

Flexible Conduit for Demanding Fluid&Gas Transfer

A Metal Hose is a flexible,corrugated tube assembly engineered to convey liquids,gases,and semi-solids in applications where rigidity,temperature extremes,pressure,corrosion,or vibration rule out rubber or plastic alternatives.It provides durable flexibility for connecting components that have relative movement or misalignment.

Core Construction&Types

1.Corrugated Hose(The Flexible Core)

Stripwound Hose:Formed by spirally winding a pre-formed metal strip,creating a deep,interlocked corrugation.Known for high flexibility and good compression/bending strength.

Annular Corrugated Hose:Manufactured from a thin-walled tube that is hydraulically or mechanically formed into concentric,ring-like corrugations.Offers superior pressure retention,flexibility,and a smoother bore.

2.End Connections

Attached Fittings:Permanent connections,including:

Beaded&Clamped:A cost-effective standard for lower pressures.

Braided&Captive Fittings:Where the braid is captured under a ferrule for high-integrity.

Welded/Fused:A permanent,leak-proof weld for the most demanding services.

Reusable Fittings:Allow for field replacement of the hose,providing long-term cost savings.

3.Braiding(Reinforcement)

Single Braid:A single layer of interwoven metal wire over the corrugated core.Provides medium pressure capability and protects the core.

Double Braid:Two concentric layers of braid.Used for high-pressure applications and provides greater strength and pulse resistance.

Unbraided:Used for full vacuum,low pressure,or thermal movement applications where maximum flexibility is needed.
