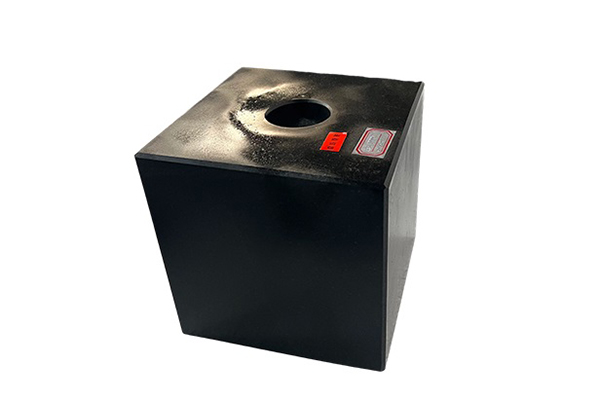

Precision Granite Square Box

Precision Granite Square Box

Precision Granite Square Box

The Definitive Volumetric Reference for Three-Dimensional Metrology

System Overview:The 3D Datum Master

A Precision Granite Square Box is a monolithic,cube-shaped metrological artifact engineered to establish and verify spatial perpendicularity with exceptional accuracy.Serving as the primary three-dimensional datum,it provides simultaneous reference to three mutually perpendicular planes(X,Y,Z),enabling comprehensive geometric verification of machinery,measurement systems,and precision assemblies.This instrument represents the convergence of material science,precision manufacturing,and advanced metrology into a single,authoritative reference standard.

Material&Construction Excellence

Granite Selection&Stabilization

Material Source:Premium black granite with density exceeding 2.98 g/cm³,selected for its exceptional isotropic properties and fine-grained microstructure

Thermal Processing:Each block undergoes extended stress-relief cycling(minimum 60 days)in computer-controlled environmental chambers

Structural Integrity:Ultrasonic testing and shear wave analysis verify absence of internal flaws or inclusions before machining

Aging Protocol:Post-machining thermal acclimatization ensures long-term dimensional stability

Monolithic Architecture

Single-Piece Construction:Entire box machined from one continuous granite block,eliminating assembly errors and differential expansion issues

Optimized Wall Thickness:Walls engineered with tapered profiles(typically 15-25%of external dimensions)to maximize stiffness while minimizing weight

Internal Reinforcement:Strategic ribbing and corner fillets maintain structural integrity under load

Precision-Ground Surfaces:All six faces finished to specified flatness with consistent surface texture

Engineering Features

Kinematic Mounting System:Three hardened spherical feet provide isostatic support,preventing distortion from mounting surfaces

Lifting&Handling Provisions:Threaded inserts with stainless steel eyelets for safe manipulation

Thermal Symmetry:Balanced mass distribution ensures uniform thermal response across all faces

Edge Protection:Micro-beveled edges(0.2-0.5mm)prevent chipping while maintaining measurement capability

Technical Specifications by Grade

Grade AA(Laboratory Master)

Face-to-Face Perpendicularity:±0.5 arc-seconds(±2.5µrad)

Individual Face Flatness:0.1µm per 100mm(0.000004"per 4")

Opposite Face Parallelism:0.15µm per 100mm(0.000006"per 4")

Edge Straightness:0.08µm per 100mm on all 12 edges

Surface Finish:0.1-0.2µm Ra(4-8µin)

Thermal Stability:Certified coefficient 5.5-6.0×10⁻⁶/°C

Grade A+(High-Precision Inspection)

Face-to-Face Perpendicularity:±1.0 arc-seconds(±5µrad)

Individual Face Flatness:0.2µm per 100mm(0.000008"per 4")

Opposite Face Parallelism:0.25µm per 100mm(0.000010"per 4")

Edge Straightness:0.15µm per 100mm on all 12 edges

Surface Finish:0.2-0.4µm Ra(8-16µin)

Thermal Stability:Certified coefficient 5.5-6.5×10⁻⁶/°C

Grade A(Standard Precision)

Face-to-Face Perpendicularity:±2.0 arc-seconds(±10µrad)

Individual Face Flatness:0.4µm per 100mm(0.000016"per 4")

Opposite Face Parallelism:0.5µm per 100mm(0.000020"per 4")

Edge Straightness:0.3µm per 100mm on all 12 edges

Surface Finish:0.4-0.8µm Ra(16-32µin)

Thermal Stability:Standard coefficient 6.0-6.5×10⁻⁶/°C
