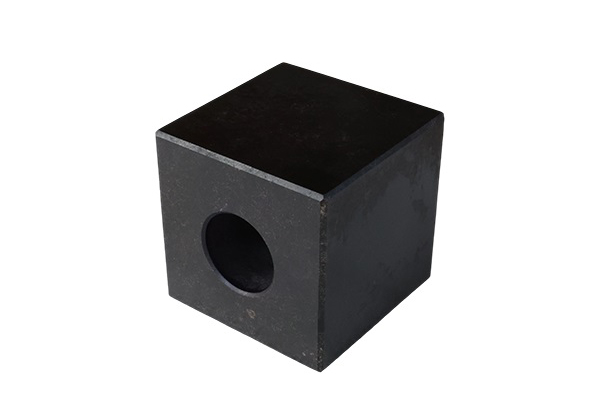

Granite Inspection Square Box

Granite Inspection Square Box

The Essential Three-Dimensional Reference for Quality Assurance Systems

Instrument Definition&Core Function

A Granite Inspection Square Box is a precision-engineered cubic reference standard specifically designed for production floor quality control,fixture verification,and routine geometric inspection.Unlike laboratory-grade master artifacts,this instrument is optimized for daily use in industrial environments,providing robust,reliable three-dimensional reference geometry for verifying perpendicularity,parallelism,and spatial relationships in manufacturing processes.It serves as the practical cornerstone of dimensional quality assurance systems across diverse industries.

Design Philosophy:Industrial Robustness Meets Metrological Precision

Optimized for Production Environments

Durability-First Construction:Engineered with reinforced corners and thicker walls than laboratory equivalents to withstand regular handling in workshop conditions

Protective Features:Enhanced edge chamfers(0.5-1.0mm)and corner radii to prevent damage from incidental contact

Ergonomic Handling:Strategically placed lifting points and handholds designed for safe manipulation by production personnel

Environmental Tolerance:Balanced design maintains accuracy across typical manufacturing floor temperature ranges(18°C-24°C)

Material Selection for Industrial Applications

Industrial-Grade Granite:High-density black granite(≥2.90 g/cm³)selected for optimal wear resistance and impact tolerance

Surface Hardening:Optional flame or induction hardening of critical measurement faces increases durability in high-use applications

Stain Resistance:Treated with penetrating sealants that protect against oils,coolants,and typical workshop contaminants

Thermal Adaptability:Material and design optimized for stable performance in non-climate-controlled environments
