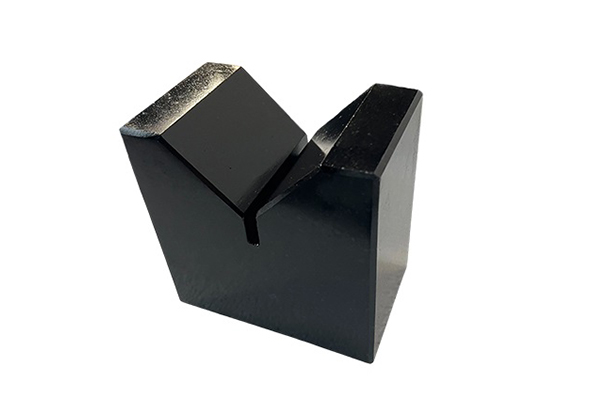

Granite Vee Block

Granite Vee Block

Ultimate Stability for Precision Applications

The Granite Vee Block is a fundamental yet critical workholding and reference fixture,engineered for applications demanding uncompromising dimensional stability and resistance to environmental interference.Crafted from high-quality,naturally stable granite,it provides a permanent,reliable foundation for the most exacting tasks in measurement and inspection.

Inherent Material Superiority

Exceptional Thermal Stability:Possesses an extremely low coefficient of thermal expansion,ensuring minimal dimensional change with temperature fluctuations.This guarantees consistent measurement results over time and across shifts in ambient conditions.

Superior Vibration Damping:Granite's natural composition effectively absorbs and dissipates vibrations from machinery and environmental sources,creating a"quiet"base that is essential for repeatable,high-resolution measurements.

Permanent Accuracy&Wear Resistance:Significantly harder than tool steel,the lapped granite surface resists wear,corrosion,and denting,preserving its critical geometric accuracy for the lifespan of the tool.

Non-Magnetic&Electrically Insulating:Provides a completely neutral platform for inspecting ferrous parts without magnetic pull and is safe for use with sensitive electronic components.

Precision Engineering&Features

Master-Grade Geometry:The 90-degree V-groove,reference sides,and base are precision-lapped to exacting tolerances for flatness,squareness,and angular accuracy.

Monolithic Construction:Fabricated from a single piece of granite to ensure maximum rigidity and eliminate any risk of movement between components.

Clean,Maintenance-Free Operation:Requires no lubrication,will not rust,and is easily cleaned,making it ideal for cleanrooms and controlled environments.

Key Application Areas

Metrology&Calibration Labs:Serves as a primary reference standard on surface plates for setting masters,calibrating instruments,and performing precision layout.

High-Accuracy Quality Control:The preferred fixture for checking runout,concentricity,and diameter of precision shafts,rollers,and bearings in inspection departments.

Advanced Manufacturing&Assembly:Provides a stable,non-marring support for assembling delicate aerospace,optical,or semiconductor components.

Research&Development:Used as a fundamental,stable datum in prototyping and experimental setups where measurement integrity is paramount.
