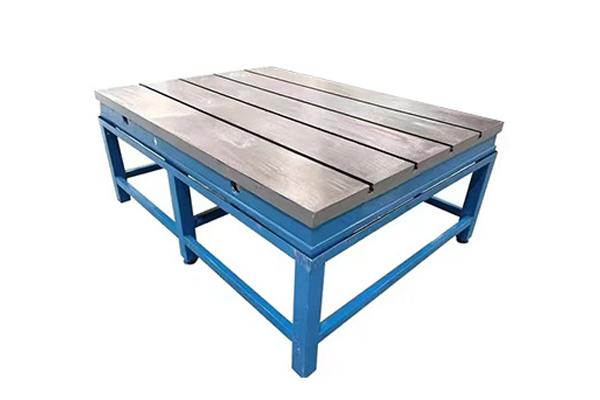

Cast Iron Surface Plate

Cast Iron Surface Plate:The Ultimate Workshop Reference Standard

A Cast Iron Surface Plate is a precision-machined reference platform designed to serve as an absolute flatness standard for measurement,inspection,and layout in industrial environments.It combines rugged durability with exceptional dimensional stability to support high-accuracy metrology and machining tasks.

Core Advantages of Cast Iron Construction

Superior Vibration Damping:Cast iron's granular structure effectively absorbs and dissipates vibrations,providing a stable,"quiet"surface ideal for sensitive measurements and precision assembly.

Excellent Thermal Stability:The material responds predictably to temperature changes,minimizing thermal distortion and maintaining consistent performance across varying shop conditions.

Enhanced Rigidity:Heavy ribbed construction beneath the working surface prevents deflection under load,ensuring geometric integrity when supporting heavy components.

Durable Work Surface:Withstands the demands of daily workshop use,including incidental contact with tools and components,while maintaining its reference characteristics.

Precision Engineering Features

Hand-Scraped Finish:Premium plates feature a traditionally hand-scraped surface that creates microscopic bearing points for optimal flatness,lubricant retention,and reduced friction when sliding components.

Stress-Relieved Construction:Manufactured from high-grade cast iron that has undergone proper aging and stress-relief processes to prevent warping or dimensional change over time.

Precision-Machined Edges:Side and end surfaces are machined square to the working surface,providing reliable secondary datums for setup and measurement.

Reinforced Structural Design:Underside ribbing patterns are engineered for maximum stiffness while minimizing overall weight.
